Advanced filtering options for Logs

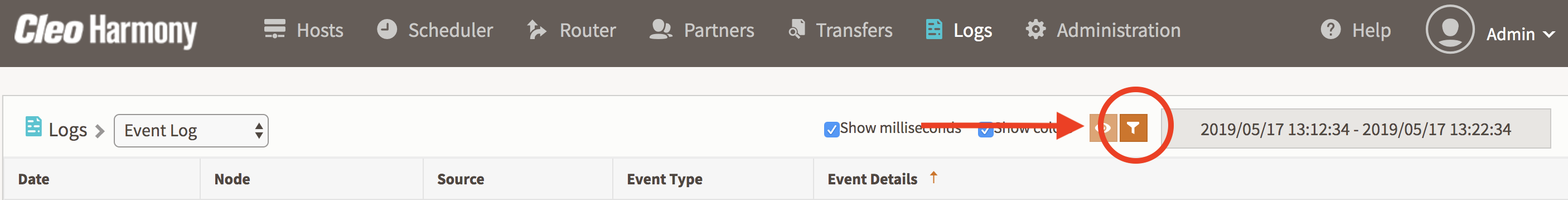

Advanced filtering options are used to pre-filter data from the server side before it reaches your Logs page. To access these options, click the Pre-Filter (Server-Side) button in the button row:

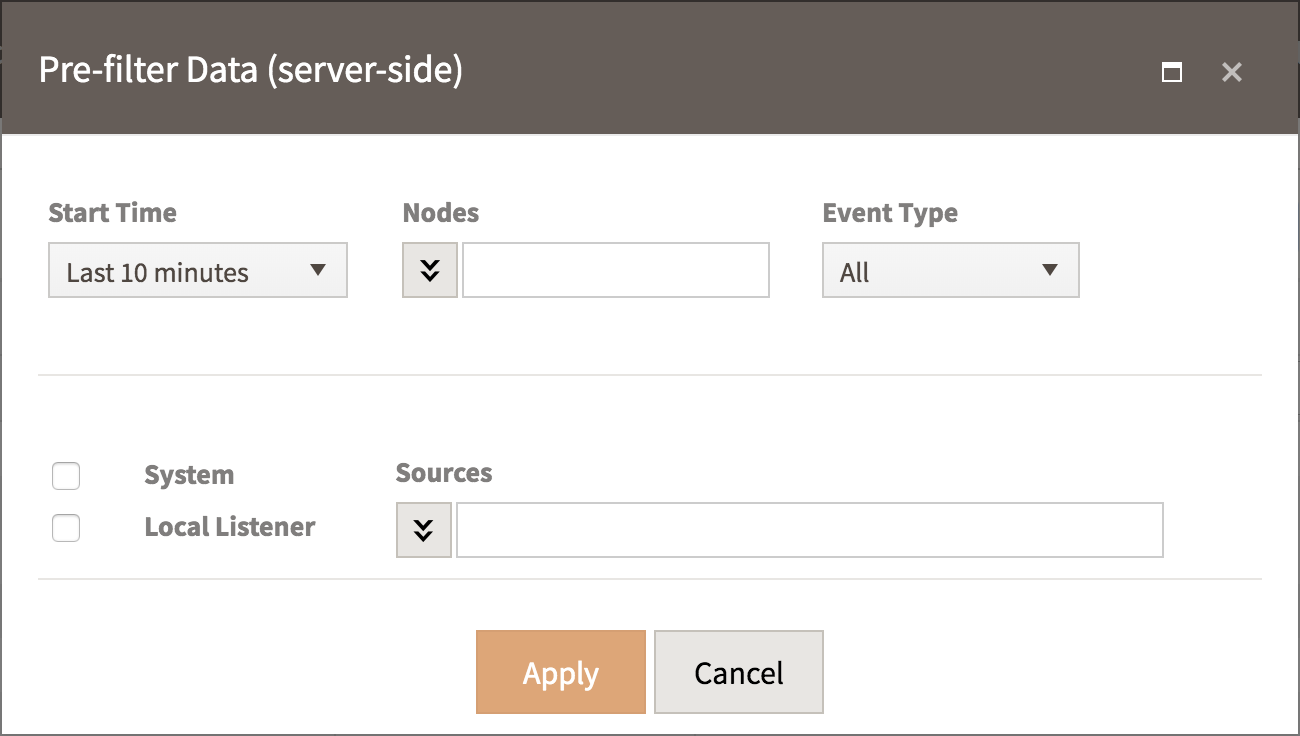

The Pre-filter Data (server-side) dialog box appears:

Use this dialog box to control settings for pre-filtering data before it appears on your Logs page.

Start Time: Use the Start Time drop-down menu to choose a start time for pre-filtering. The start time is bound to the full Logs list start time.
Nodes: Use the Nodes option to filter by specific nodes. You can toggle this from a drop-down menu to a text field by clicking the down arrow button. Click the field to open the drop-down menu or, when toggled to text, enter text. Nodes are live data. Nodes that are online are available for you to select from the drop-down menu. Offline Nodes must be typed into the text field.
Note: The Nodes visible to a given user depend on the user's specific system privileges.
Event Type: Use the Event Type drop-down menu to choose a type of event to filter. Select from All, Errors, Warnings, and Errors and Warnings.
Sources: Use the System and Local Listener options to pre-filter data from the System, Local Listener, or both.; Use the Sources option to filter by a specific source. You can toggle this from a drop-down menu to a text field by clicking the down arrow button. Click the field to open the drop-down menu or, when toggled to text, enter text.
